LHD 1.7MW turbines

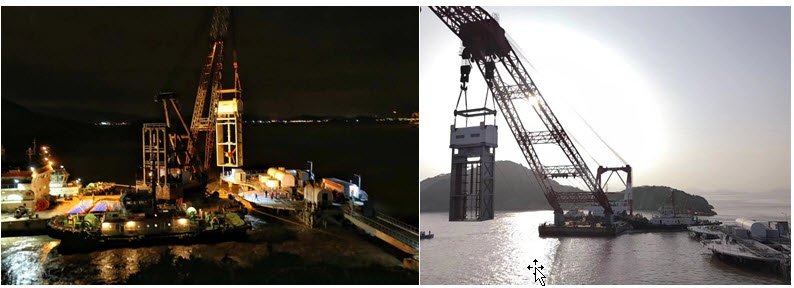

Supported by the SFPMRE, the Hangzhou United Energy Co. Ltd. is developing the LHD Tidal current energy demonstration project. The #1 demonstration platform was deployed near Xiushan Island in March 2016. They plan to install 7 turbines in their platform, with installed capacity of 3 400 kW. 2 turbines (600 kW, 400 kW) were installed on the platform in July and connected to the grid in August 2016. The amount of electricity accumulated was more than 1GWh until December2018. In 2016, Hangzhou United Energy Co. Ltd. was funded RMB 45 million by the SFPMRE to develop new 300 kW h-axis turbines and a new 400 kW v-axis turbines. The turbines were deployed in December 2018; the capacity of LHD project reached 1.7 MW.

Technology Developer

Hangzhou United Energy Co Ltd

Device Status Is the device actively being developed or is available for purchase (active)? Or has development or support ended (inactive)?

Inactive

Technology Type

Axial Flow Turbine

Power Take-Off Mechanism that converts the motion of the prime mover into a useful form of energy such as electricity, learn more

Direct Drive Generator

Max Rated Power Capacity The maximum amount of electricity that can be produced by the device, as rated by the manufacturer.

1700 KW

Surface Expression

True

Estimated TRL Estimated Technology Readiness Level scale from 1 to 9 with 9 being the most mature technology

TRL Last updated: 19 January 2023

6

Energy Resource

Tidal

Water Column Position

Last Modified

29 April 2025
