KIOST Tidal Energy Converter

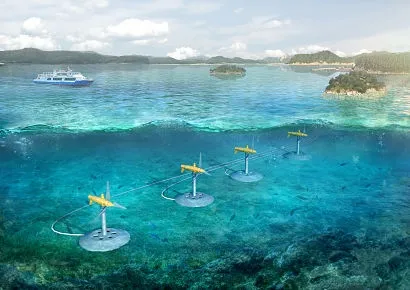

The project is aimed to develop and demonstrate the active-controlled, high efficiency and low cost 200 kW Tidal Energy Converter (TEC), with the operating capacity applicable to the shallow sea conditions (about 20 m). The TEC was manufactured by KIOST and its caisson-type substructure was designed, fabricated, and deployed by Hyundai Engineering and Construction 2016. In 2017, the performance of PMSG and main drive train was evaluated using a portable dynamo test facility, and the internal communication system and the active rudder device for automatic and passive yaw control have been also tested in indoor and underwater environments. The TEC will be installed at the Uldolmok test site for open sea test in early 2018

Technology Developer

Korea Institute of Ocean Science and Technology

Additional Information

Device Website

Device Status Is the device actively being developed or is available for purchase (active)? Or has development or support ended (inactive)?

Active

Technology Type

Axial Flow Turbine

Power Take-Off Mechanism that converts the motion of the prime mover into a useful form of energy such as electricity, learn more

Direct Drive Generator

Max Rated Power Capacity The maximum amount of electricity that can be produced by the device, as rated by the manufacturer.

4500 KW

Surface Expression

False

Estimated TRL Estimated Technology Readiness Level scale from 1 to 9 with 9 being the most mature technology

TRL Last updated: 18 September 2023

6

Energy Resource

Ocean Current

Water Column Position

Last Modified

2 July 2025
