GWave Power Generation Vessel

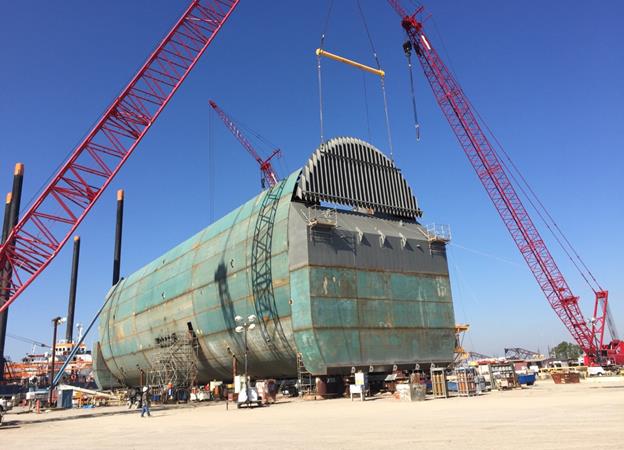

The working principle of the GWave Power Generation Vessel (PGV) consists of a floating sealed tube such that sea water doesn’t engage with any internal components. The tube is aligned with the incident waves, and as swell passes under it, the tube pitches fore and aft. Within the tube, there are large weights that roll on tracks. As the vessel pitches downward, the weights roll downhill, and then as the swing of the buoyancy pushes that end of the vessel back up, the weights are once again positioned to roll back downhill. Then the kinetic energy, by way of linear motion, is converted into electricity. The vessel is 72 m long, 22 m high, and weighs just under 13,000 tons. The GWave PGV was scheduled for testing at Wave Hub in the UK in 2018, but was postponed indefinitely.
Additional Information
Device Status
Is the device actively being developed or is available for purchase (active)? Or has development or support ended (inactive)?
Inactive
Technology Type
Power Take-Off
Mechanism that converts the motion of the prime mover into a useful form of energy such as electricity, learn more
Direct Drive Generator
Max Rated Power Capacity
The maximum amount of electricity that can be produced by the device, as rated by the manufacturer.
9000 KW
Surface ExpressionTrue
Estimated TRL
Estimated Technology Readiness Level scale from 1 to 9 with 9 being the most mature technology
TRL Last updated: 16 February 2017
6
Energy Resource
- Wave
Water Column Position
Surface
--------------------------------------------
Submerged - Mid
Entire Water Column
--------------------------------------------
Submerged - Bottom
Last Modified
14 June 2024
